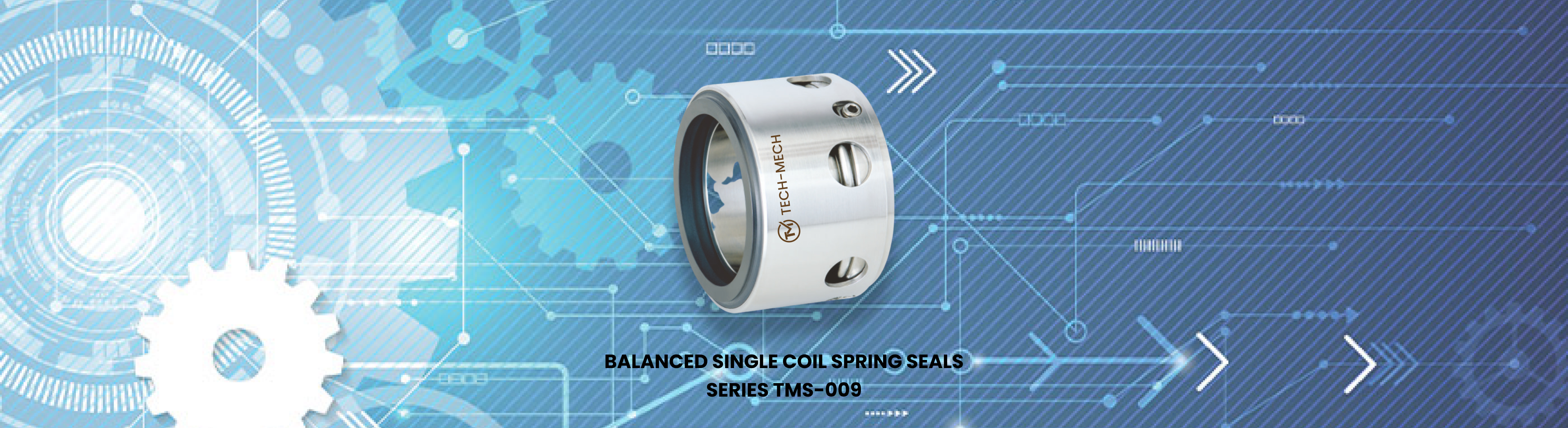

BALANCED SINGLE COIL SPRING SEALS
Series TMS-009 is single coil spring seal developed for light contamination, dirty media and clogging type application. These type also allows it to fit onto a normal shaft without any balancing step. The mechanical drive of this seal is realised by grub screw which lock onto the shaft. The seal has a limited axial length, compact shape which allows easy mounting.
Seal Characteristics
• Single Seal• Balanced
• Helical Coil spring
• Independent on direction of rotation
Applications
• General Chemicals• Petrochemicals
• Light hydrocarbons
Performance Range
• Shaft Diameter : 10...100mm• Pressure : 30 bar (max)
• Temperature : -20...140OC
• Velocity : 15 m/sec
Materials
• Seal Faces : Carbon, Ceramic, SiC, Tung. Carbide• Metal Parts : SS304, SS316, Special Alloy
• O-rings : Elastomers, PTFE
