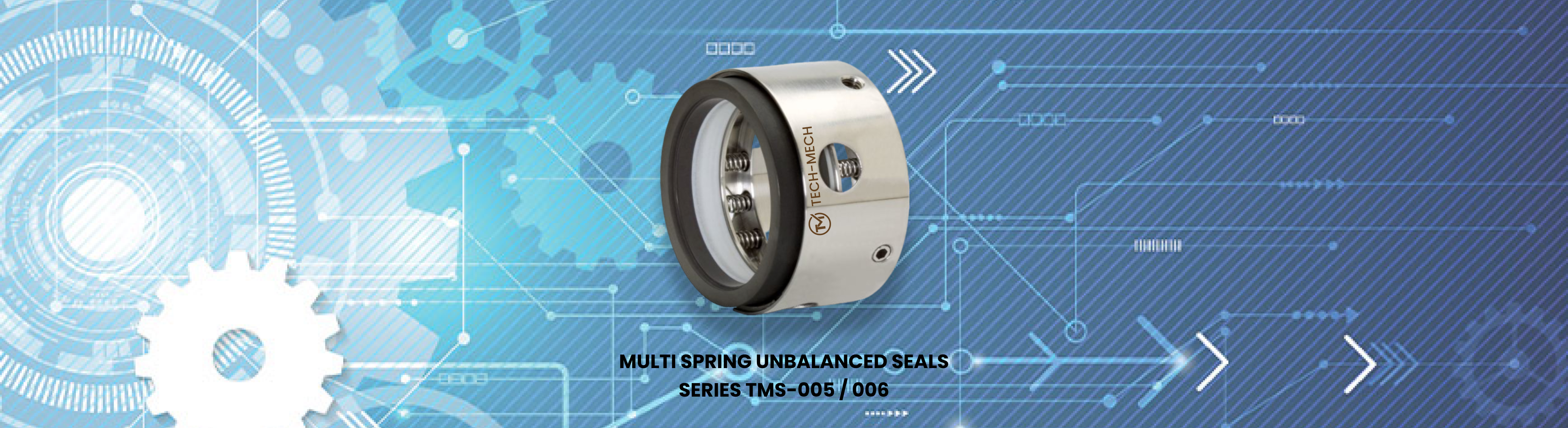

MULTI SPRING UNBALANCED SEALS
Series TMS-005/006 are multi spring, pusher type unbalanced seals used for universal applications. The seals are compact in design suiting all types of rotating equipments, pumps and mixers. Drive lugs in the retainer will provide torque transmission and reduce slippage on shaft and sleeve. A snap ring holds all components together, helping in easy installation. The parts are interchangeable, TMS-005 can be converted to TMS-006 by just changing the seal ring and the secondary member.
Seal Characteristics
• Single Seal• Unbalanced
• Independent on direction of rotation
Applications
• General Chemicals• Petrochemicals
• Refineries
• Light hydrocarbons
Performance Range
• Shaft Diameter : 18...100mm• Pressure : 10 bar (max)
• Temperature : -20...240OC
• Velocity : 20 m/sec
Materials
• Seal Faces : Carbon, SiC, Tung. Carbide• Metal Parts : SS316, Hastelloy-C, Alloy 20
• O-rings : Elastomers (005) Elastomers (006)
